Application templates
The following templates provide starting points for projects or training. Each is a complete template project containing a Controller, HMI, simulator profile and documentation that restores straight into Designer. Add your details and download immediately.
How templates work. The Controller and HMI files can be restored into Designer as applications and used in Emulation and the Simulator profile can be imported into Simulator to provide a working plant simulation with no engineering. The objects and screens can be easily modified in Designer, and the Simulator rules/actions can be easily modified in excel or in the Simulator application.
Heating Plant – Configuration 01

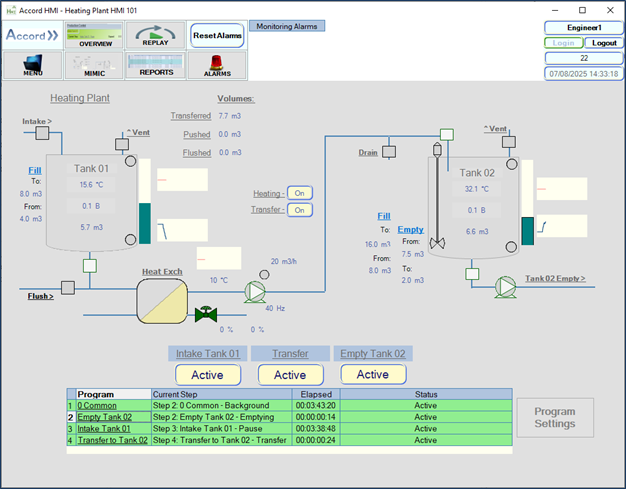

A small sample application which heats product as it is being transferred from Tank 01 to Tank 02.
Controller, HMI, simulator profile & PDF docs · 1.1 MB ZIP
Heating Plant – Configuration 02

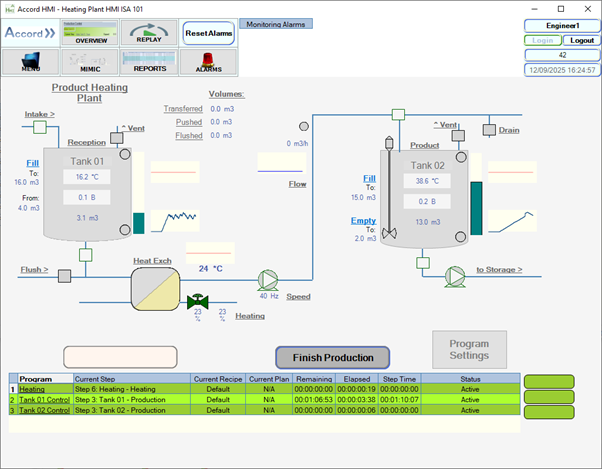

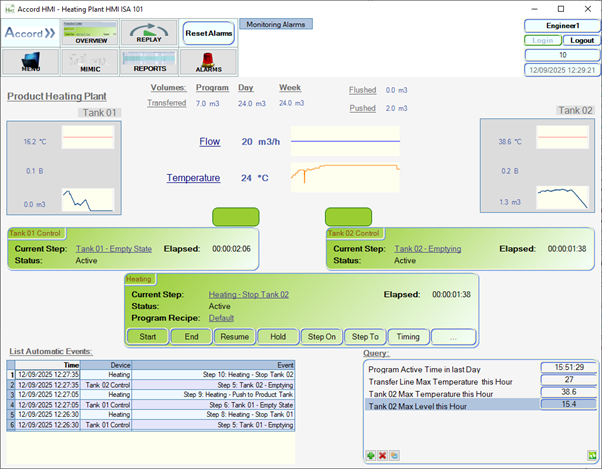

Master/slave program style: Tank 01 and Tank 02 are individually controlled by Unit programs. The Heating program starts and controls the Tank 01 and Tank 02 programs.
Controller, HMI, simulator profile & PDF docs · 3.3 MB ZIP
CIP Set with 1 CIP Tank – Configuration 01

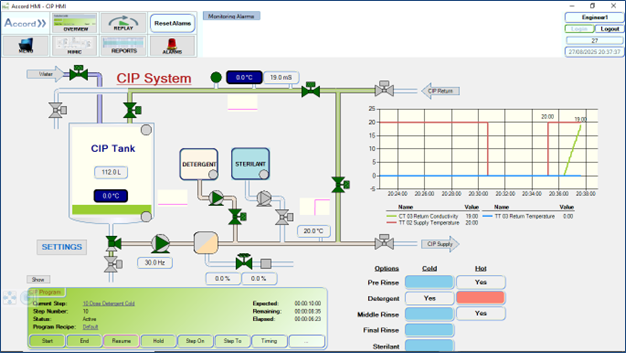

A small sample application which cleans a target product system with selectable options and setpoints.
Controller, HMI, simulator profile & PDF docs · 3.6 MB ZIP
Biogas Plant – Configuration 01

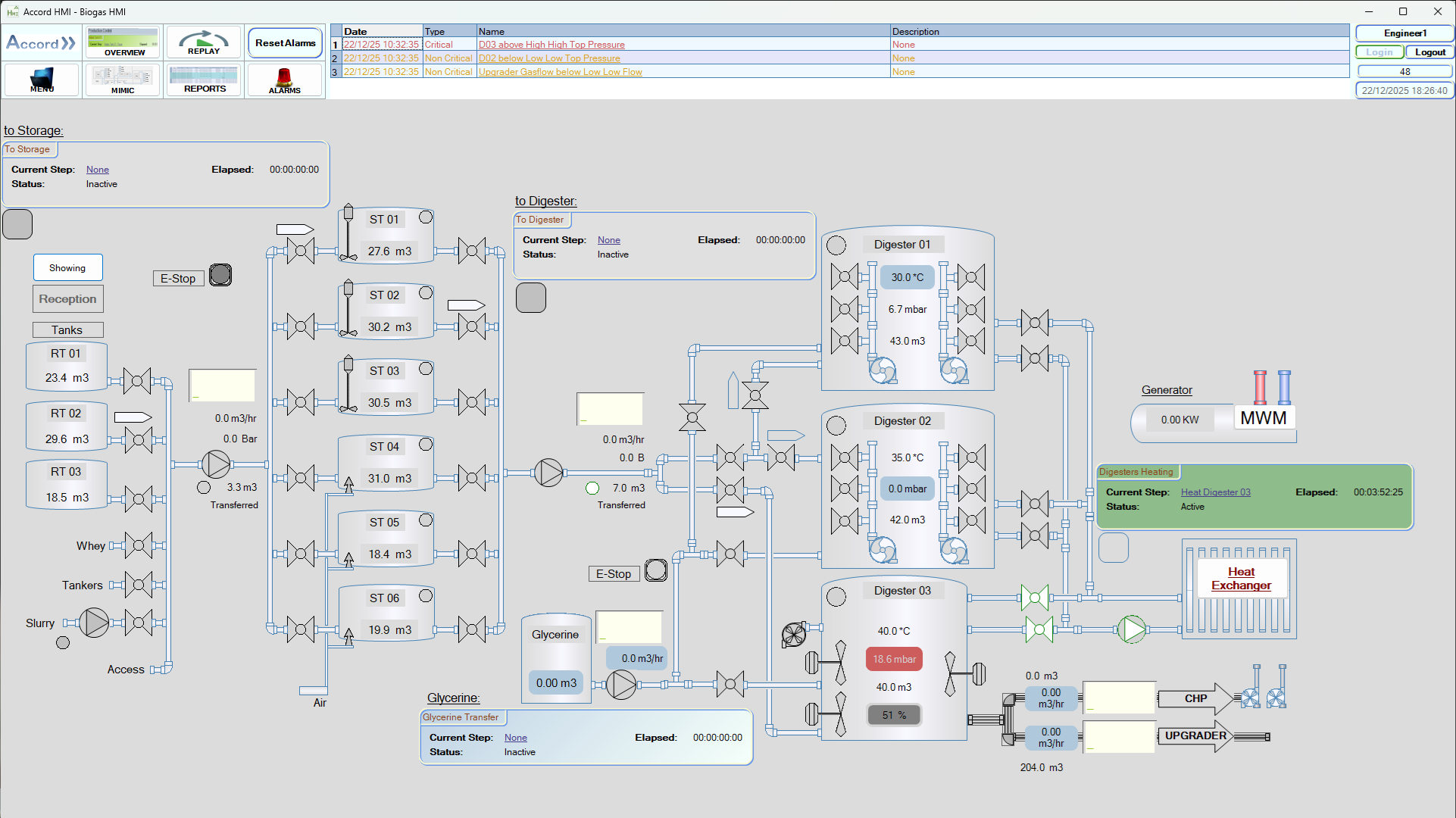

3 Reception Tanks, 6 Storage Tanks and 3 Digesters, with Mixing and Heating programs.
Controller, HMI, simulator profile & PDF docs · 4.4 MB ZIP
Want a model built for your own plant?
Upload your P&ID and a short process description. Logicon will build a working Accord model based on your process, ready to review and test on a remote virtual PC. No commitment required.
